1. Introduction

Pressure calibration is one of the most widely performed calibration activities in industrial plants, laboratories, and field environments. Whether you’re working with gauges, transmitters, sensors, or switches, accurate pressure measurement is essential for safety, quality, and compliance.

In real work, gauges drift because of wear, vibration, temperature changes, handling, and over-pressure events. If you do not verify them regularly, you risk relying on readings that no longer represent the actual process pressure.

This guide serves as your master resource—a complete overview of pressure calibration from fundamentals, how to identify common errors, and how to align the work with ISO 17025 requirements.

2. What Is Pressure Calibration

Pressure calibration is the process of comparing the reading of a pressure‑measuring device (the DUT—Device Under Test) against a known, traceable reference standard. The goal is to determine accuracy, identify errors, and adjust the device if necessary.

In simple terms:

You apply pressure → compare readings → record results → evaluate accuracy.

Pressure calibration ensures that the device provides reliable measurements within its specified tolerance.

ssure

Some common units are Psi, Pa, Bar, mmHg, and  mmH20.

3. Why Pressure Calibration Matters

So many processes rely on pressure systems. It is either from a pneumatic source or a hydraulic high-pressure source. Some machines use pressure to enable control.

Incorrect readings can lead to problems in almost every industrial process, these are:

• Overpressure hazards
• Equipment failure
• Product quality issues
• Process inefficiencies
• Failed audits
• Regulatory non‑compliance
• Safety risks

Accurate pressure measurement supports:

• Process control
• Safety systems
• Quality assurance
• Maintenance planning
• ISO 17025 traceability

Pressure calibration is not just a technical requirement—it’s a critical part of operational reliability.

4. Where Pressure Calibration Is Used

Pressure instruments are everywhere. Common industries include:

• Oil and gas
• Food and beverage
• Pharmaceutical manufacturing
• HVAC and cleanrooms
• Water treatment
• Power generation
• Chemical processing
• Automotive and aerospace
• Laboratories and metrology centers

Each environment has different accuracy requirements, but the calibration principles remain the same.

5. Types of Pressure Instruments

Understanding the instrument type helps determine the correct calibration method.

5.1 Pressure Gauges

Analog or digital, used for general monitoring. Check this guide for more details: Pressure Gauge Calibration Using Fluke 754 and Pressure Modules

5.2 Differential Pressure Gauges

Used in filtration, flow measurement, and cleanrooms. Check this article about differential pressure gauge calibration: Differential pressure gauge

5.3 Pressure Transmitters

Convert pressure into an electrical signal (mA, V, or digital). Often require loop checks and zero/span adjustments. Check this article about pressure transmitter calibration: pressure transmitter calibration

5.4 Pressure Sensors

Compact devices used in automation and embedded systems. Check this article for more details: pressure sensor calibration

5.5 Pressure Switches

Trigger at a set pressure point. Calibration involves verifying trip and reset points. Check this article about pressure switch calibration: pressure switch calibration

5.6 Vacuum Gauges

Measure pressures below atmospheric.

5.7 Compound Gauges

Measure both vacuum and positive pressure.

Each type has unique calibration considerations, but the core principles are the same.

6. Types of Pressure Standards

Your reference standard determines the accuracy and traceability of your calibration.

6.1 Digital Pressure Calibrators

Examples: Fluke 754 with pressure modules. Portable, accurate, and ideal for field work.

6.2 Electronic Deadweight Testers

Primary standards with the highest accuracy. Used in laboratories and high‑accuracy applications. Check how EDWT is used in this article: Pressure Gauge Calibration Using Electronic Deadweight Tester (E-DWT)

6.3 Comparator Pumps

Used to generate pressure for comparison. Common in field calibration.

6.4 Manometers

Ideal for low‑pressure and differential applications.

6.5 Pressure Controllers

Automated systems that generate and control pressure precisely.

Choosing the right standard depends on the required accuracy and the instrument under test.

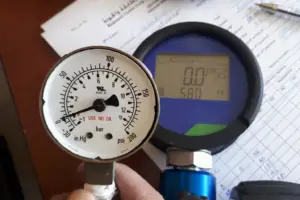

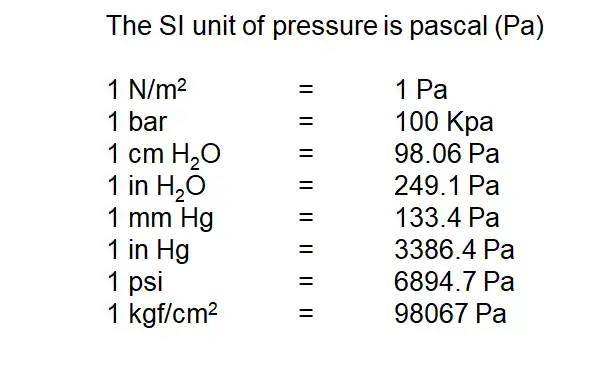

7. Pressure Units and Conversions

Pressure can be expressed in many units:

• psi
• bar
• kPa
• MPa
• inH₂O
• mmHg
• atm

Understanding conversions is essential, especially when calibrating instruments with different unit settings.

Example: 1 bar = 14.5038 psi 1 psi = 6.89476 kPa

Most digital calibrators handle conversions automatically, but technicians should still understand the relationships.

8. Calibration Methods

Pressure calibration typically follows these methods:

8.1 Increasing and Decreasing Method

Apply pressure in increasing steps, then decreasing steps, to check hysteresis.

8.2 5‑Point or 10‑Point Calibration

Common points: 0%, 25%, 50%, 75%, 100%.

8.3 As‑Found and As‑Left

Record the condition before and after the adjustment.

8.4 Zero Adjustment

Especially important for analog gauges and transmitters.

9. Step‑by‑Step Pressure Calibration Overview

This is the general flow, regardless of instrument type:

Step 1: Preparation

• Verify equipment
• Check environmental conditions
• Review specifications
• Ensure reference standard is in calibration

Step 2: Setup

• Connect the DUT
• Connect the reference standard
• Ensure leak‑free connections
• Stabilize temperature

Step 3: Apply Pressure

• Follow the calibration points
• Allow stabilization
• Avoid overshooting

Step 4: Record Readings

• Document reference vs DUT
• Note any adjustments
• Record environmental conditions

Step 5: Evaluate Results

• Compare against tolerance
• Determine pass/fail
• Document uncertainty if required

For a full, detailed example, see my article: Pressure Gauge Calibration Using Fluke 754 Process Calibrator with Pressure Modules

10. Common Calibration Errors

Technicians often encounter:

• Leaks in fittings
• Temperature effects
• Poor stabilization time
• Incorrect range selection
• Damaged gauges
• Overpressure history
• Hysteresis issues
• Incorrect zeroing
• Using the wrong pressure module
• Air trapped in hydraulic systems

Understanding these helps reduce repeat calibrations and improve accuracy.

11. Measurement Uncertainty in Pressure Calibration

Uncertainty is a required part of ISO 17025 and ensures confidence in your results.

Key contributors include:

• Reference standard accuracy
• Resolution
• Repeatability
• Environmental conditions
• Stability of the applied pressure
• Operator influence
• Hysteresis
• Drift

Learn how to calculate measurement uncertainty for analog pressure gauge: Measurement Uncertainty Calculation for Analog Pressure Gauge

12. Related ISO 17025 Requirements

Pressure calibration under ISO 17025 requires:

• Traceability of reference standards → reference standard must be calibrated by an authorized calibration lab
• Measurement Uncertainty evaluation → results must include uncertainty
• Documented procedures
• Environmental control
• Competent personnel
• Proper equipment maintenance
• Clear reporting
• As‑found and as‑left data
• Decision rules
• Impartiality → no bias in reporting results
• Intermediate check → quality control to ensure confidence in calibration results

13. Tools, Equipment, and Setup

Common tools include:

• Digital pressure calibrators
• Pressure modules
• Pumps and comparators
• Fittings and adapters
• Leak‑free hoses
• Multimeters (for transmitters)
• Hand pumps
• Hydraulic pumps
• Manifolds

14. Troubleshooting and Best Practices

• Always check for leaks first
• Stabilize pressure before recording
• Use proper fittings
• Avoid overpressure
• Document everything
• Verify zero before and after
• Follow manufacturer specifications
• Use Teflon tape sparingly
• Keep hoses clean
• Avoid sudden pressure changes

15. Safety Considerations

Pressure can be dangerous. Follow these guidelines:

• Never exceed the instrument’s rated pressure
• Use proper PPE
• Secure all fittings
• Avoid standing directly in front of gauges
• Release pressure slowly
• Keep hands clear of moving parts
• Use proper hydraulic fluids
• Avoid mixing water and oil systems

Safety is always the priority.

16. Supporting Guides and Detailed Procedures

This pillar page links to your deeper articles, such as:

• Pressure Gauge Calibration Using Fluke 754
• pressure gauge calibration using an electronic deadweight tester
• differential pressure gauge calibration
• differential pressure level gauge calibration setup
• pressure transmitter calibration
• pressure switch calibration
• pressure sensor calibration
• Pressure Safety Valve Calibration
• Pressure Gauge Adjustment and Repair
• Measurement Uncertainty Calculation for Analog Pressure Gauge

These guides cover other pressure measurement instruments commonly used in industrial systems

17. Final Thoughts

Pressure calibration is a broad topic, and this guide gives you a complete overview. For technicians, engineers, and quality professionals, understanding the fundamentals helps ensure accurate measurements, safe operations, and compliance with ISO 17025.

---
