Understanding Calibration: Accuracy, Error, Tolerance & Uncertainty

There are so many important calibration terms that we need to learn, but learning these 4 terms first would make a big difference once we are exposed to calibration, especially when dealing with a calibration certificate.

Calibration is more than just checking whether your instrument reads correctly — it’s about how we understand to interpret and how reliable that reading is. For technicians and quality personnel, knowing these key terms and how they connect is absolutely crucial. In this post, I’ll walk you through four core calibration terms—accuracy, error, tolerance, and uncertainty—and explain why they matter when you get a calibration certificate or set up a calibration procedure.

1. Accuracy

• Defined as how close your measured value (the device under calibration, or UUC) is to the “true” or reference value (STD).
• Often expressed as a percent (like % error). The closer that percentage is to zero, the more accurate the device.
• It’s more qualitative — accuracy tells you “how good” things are, but not in the exact units you’re measuring.

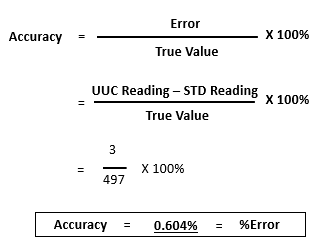

The formula on how to calculate accuracy

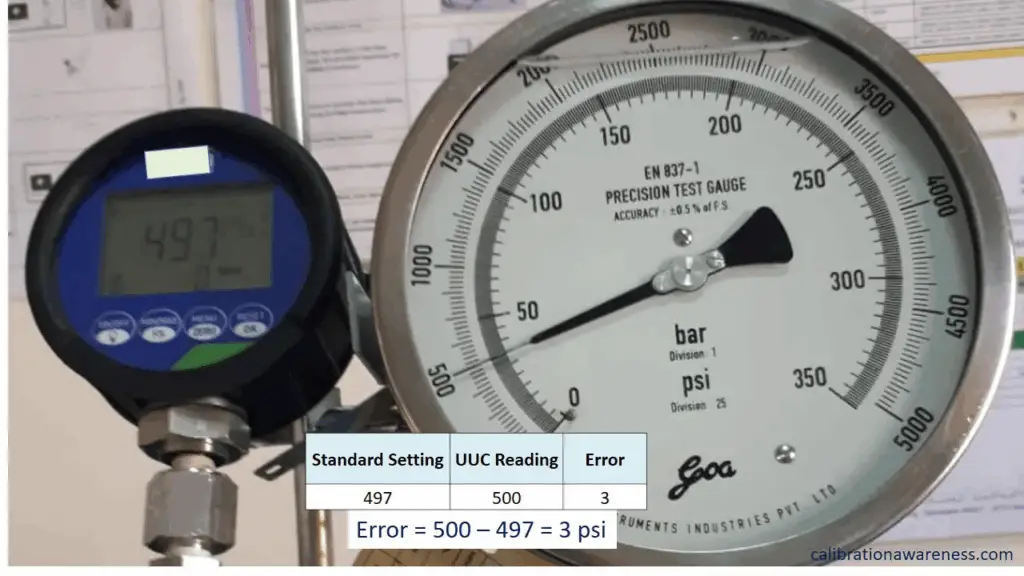

2. Error

• Error (or measurement error) is literally the difference between your UUC reading and the reference standard (STD).
• This is expressed in the same unit as what you’re measuring (e.g., psi, volts, °C).
• You can correct for error: if your calibration certificate shows an error, you can apply a correction factor (which is just the negative of the error) when using the instrument.

3. Tolerance

• Tolerance is about what deviations are acceptable. It’s the maximum error that the user, manufacturer, or regulatory body allows.
• It’s calculated as the difference between an upper tolerance limit (UTL) and a lower tolerance limit (LTL): Tolerance = UTL – LTL.
• For example, if a device’s tolerance is ±1 °C, then readings within 1°C above or below the standard are considered acceptable.
• Tolerance limits come from design specs, regulatory standards, or manufacturer information.

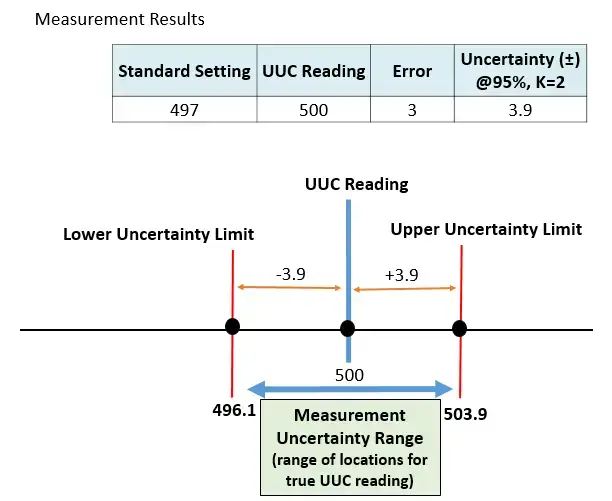

4. Uncertainty

• Measurement uncertainty is about doubt. It doesn’t measure how far off you are (like error), but rather describes a range where the true value could lie.
• It’s “non-negative parameter characterizing the dispersion” of possible values.
• Why does uncertainty exist? Because of things like:
  • environmental factors (temperature, humidity),
  • instrument resolution (how fine you can read),
  • reference standard inexactness,
  • assumptions in your measurement method,
  • repeatability (variation when you repeat the measurement).
• You usually report uncertainty with a confidence level (for example, 95%, often using a “k = 2” coverage factor).
• The smaller the uncertainty, the more precise or “exact” your measurement is considered. Read more in this link >> 8 Ways How You Can Use the Measurement Uncertainty Reported in a Calibration Certificate

---

How These Terms Relate to Calibration Results

• Accuracy and Error: Accuracy is more of a qualitative judgment (“how close are we”), while error is the actual quantitative difference in the same units as the measurement.
• Error vs. Uncertainty: Error is something you know (from your calibration data), and you can correct for it. Uncertainty is something you estimate — it’s a range of possible error you can’t fully know or remove.
• Tolerance vs. Uncertainty: Tolerance is what’s allowed by design or regulation; uncertainty is what could realistically be happening, but you’re not 100% sure.
• Decision Rule (ISO 17025 context): When you decide whether a device “passes” calibration, you don’t just compare the measurement error to the tolerance. You often include uncertainty in the decision:
  • If measurement ± uncertainty stays within tolerance → Pass
  • If it’s totally outside → Fail
  • If only part of the uncertainty range is outside tolerance → Indeterminate, and you may need to decide based on your risk or process requirements.
• Test Uncertainty Ratio (TUR): This is a useful metric:A common recommendation is a TUR of around 4:1, meaning your tolerance is four times larger than twice your uncertainty. Calibration Awareness

---

Why It Matters for Technicians

• Quality Control: Understanding these terms helps you evaluate calibration certificates properly and decide if an instrument truly meets your needs.
• Calibration Strategy: If uncertainty is too large, even a “low error” instrument might not reliably pass. That could lead you to tighten intervals, change standards, or adjust your decision rules.
• Process Risk: In processes with tight tolerances, small uncertainty can make or break whether a device is safe to use.
• Compliance: Following ISO 17025 (or similar) means you must use a decision rule that accounts for uncertainty, not just nominal error.
  How to apply all of these in a calibration certificate? Check out my ebook at this link >> DEMYSTIFYING THE ISO/IEC 17025 CALIBRATIONCERTIFICATE

Conclusion

Understanding accuracy, error, tolerance, and uncertainty isn’t just academic — it’s foundational for making good calibration decisions. By mastering these terms, technicians can:

• Interpret calibration certificates more effectively
• Apply correction factors properly
• Make risk-based decisions when things are close or uncertain
• Improve measurement reliability across processes

When it comes to decision-making regarding the results of our measurements, it is important that we understand these terms.

To learn more about these calibration terms and others, read more in this link>> Differences Between Accuracy, Error, Tolerance, and Uncertainty in a Calibration Results
